Digital Clamp Meter UT201 True RMS Sensing, auto-ranging multimeter AC Current up to 400 amp

Description

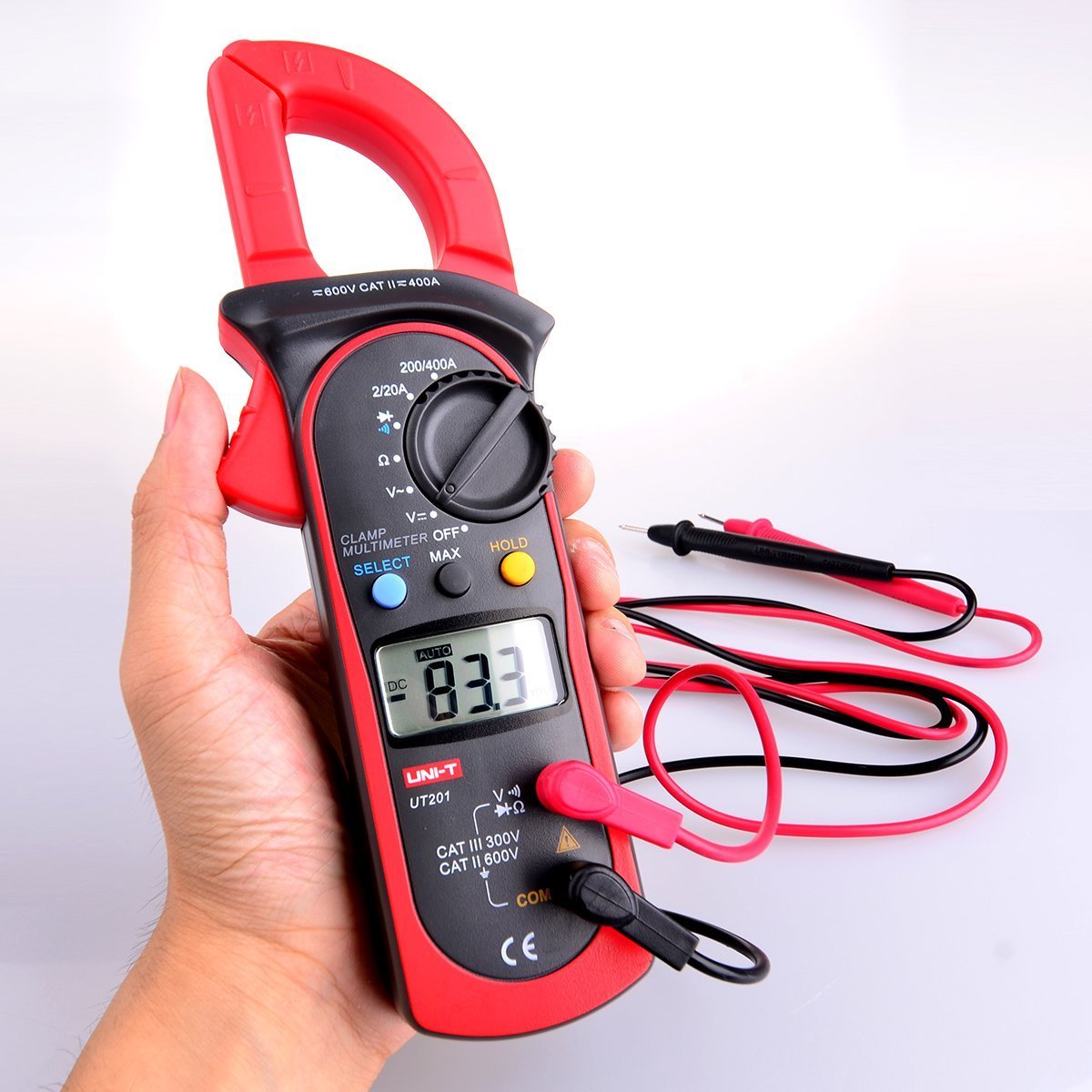

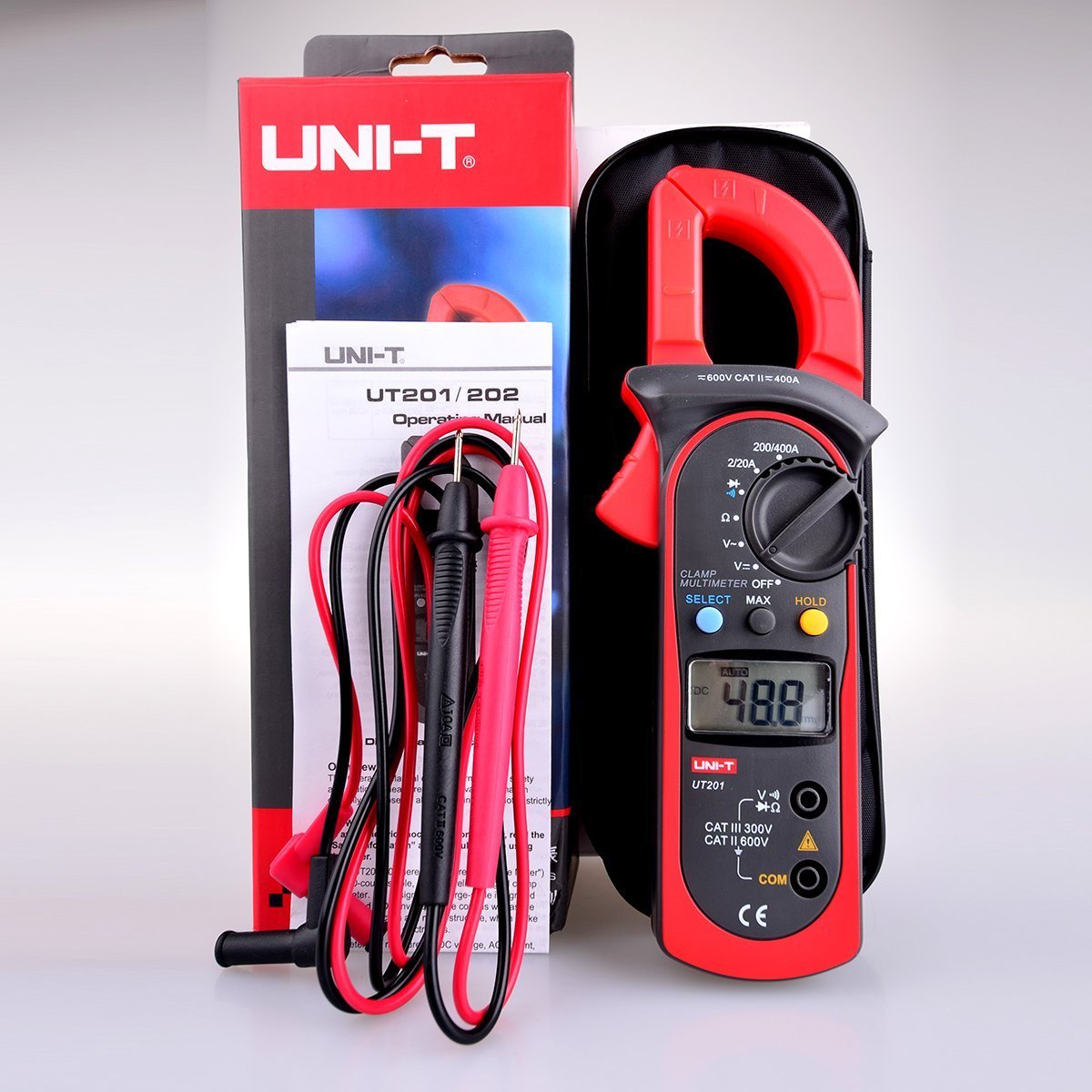

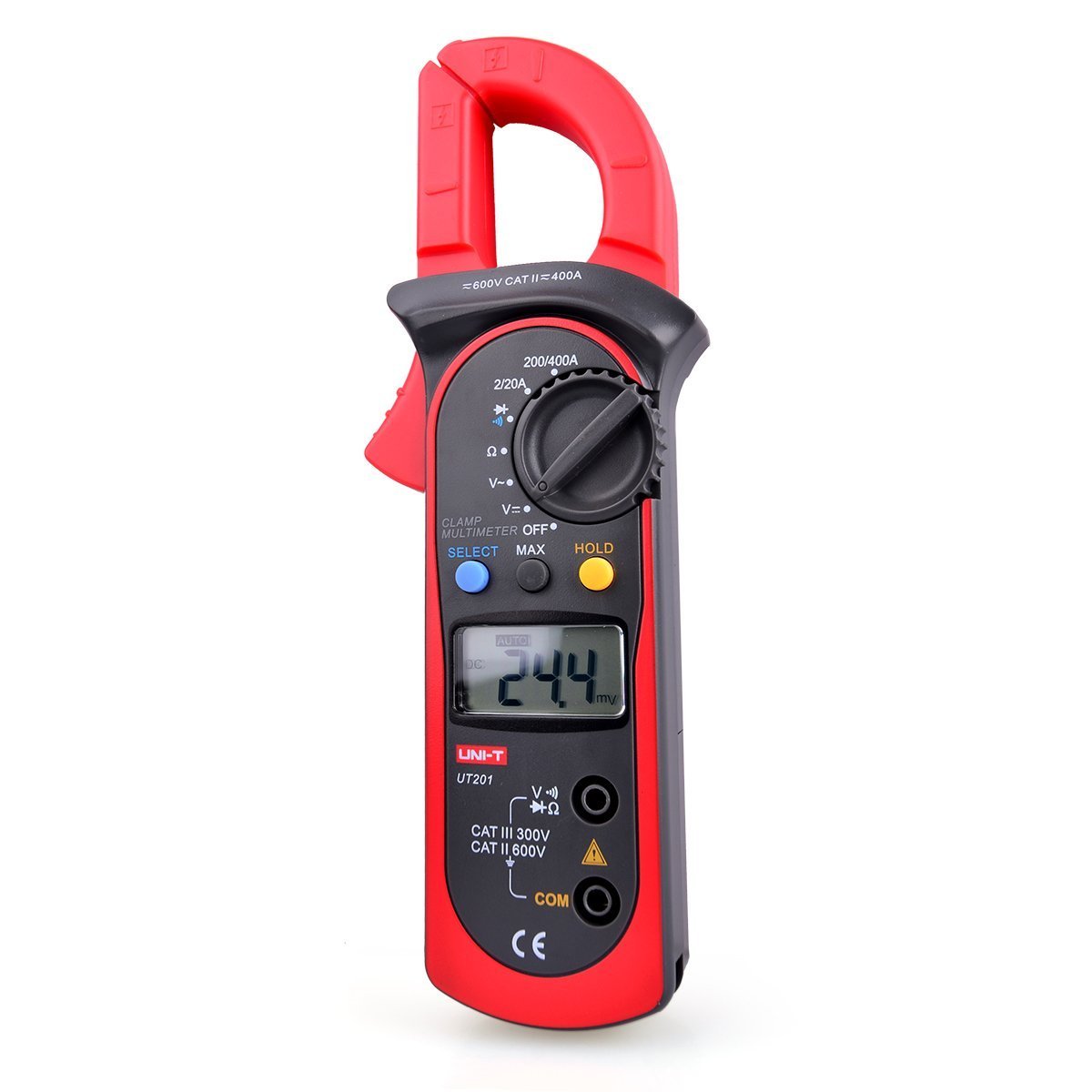

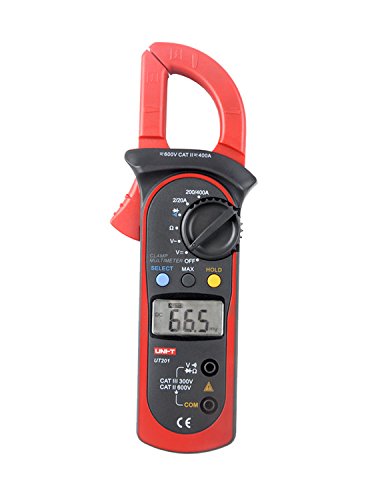

Digital Clamp Meter UT201 Features: Clamp meters, also called clamp-on meters, are typically used by electrical engineers to measure properties of electrical current without physically touching or disconnecting the conductor. This UNI-T digital clamp meter is a true RMS sensing, auto-ranging multimeter that has two jaws which can close around an electrical conductor up to 26mm in diameter to measure AC current up to 400 amp without interrupting the circuit. A set of test leads is included for measuring AC/DC voltage, resistance and for diode and continuity test. It comes with a handy carrying pouch and an easy-to-read large LCD display, and also featues Data Hold, Max Reading, Auto off functions. Specifications: Safety/Compliances: IEC61010 CAT.II 600V, CAT.III 300V overvoltage and double insulation Display: Maximum display 1999 Range selection: Auto ranging Overload display: Display OL Max. Jaw Opening: 28mm diameter Max. Current Conductor Size: 26mm diameter AC current: 2/20/200/400A AC voltage: 2/20/200/600V DC voltage: 200mV; 2/20/200/600V Resistance: 200¦¸; 2/20/200K¦¸; 2/20M¦¸ Diode test: Yes Continuity test: Yes Dimensions: 8.19 x 2.99 x 1.18 inches Power: 2 AAA 1.5V batteries Battery Life: about 150hours Weight: 9.2 oz
