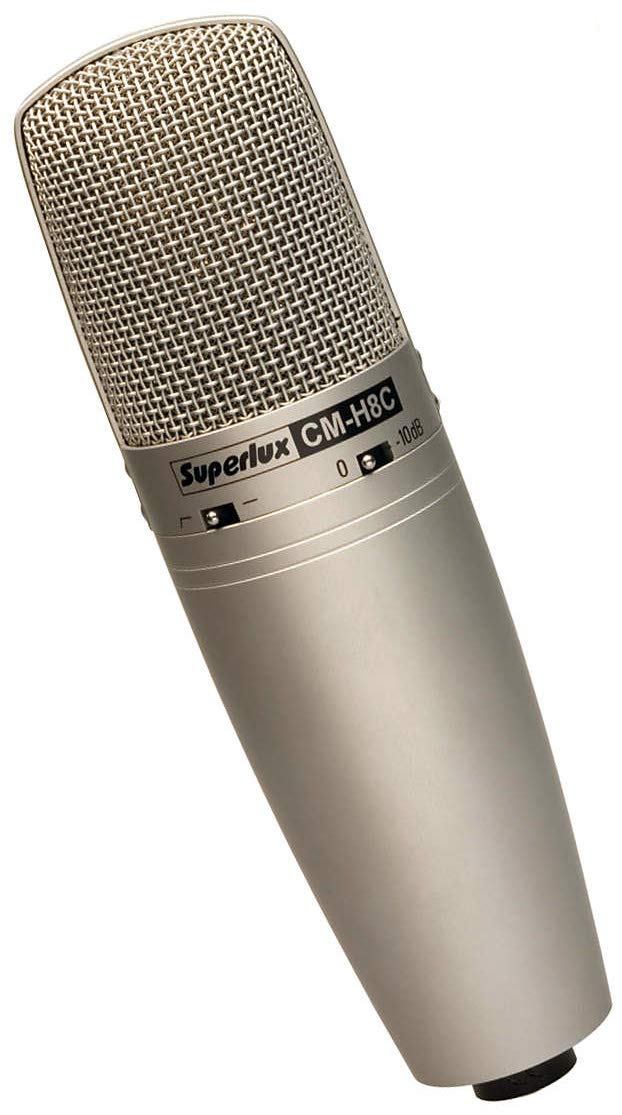

Superlux SPLX-CM-H8C Studio 3-Pattern & Dual-Element Condenser Microphone

Description

The CMH8C microphone has a dual 1 diameter membrane capsule Altering the potential of the membranes produces three polar patterns omnidirectional cardioid and figure 8 which are selectable by a switch located on the microphone body It provides the user with excellent features including high sensitivity low noise wide bandwidth a large dynamic range and precision sound at very low distortion An excellent 142 dB SPL makes this microphone ideal for extremely high sound pressure level sound reproduction and recording Features. Large 1 diameter ultra thin 3 um membrane pure gold evaporated capsule. Dual membranes act as one capsule. Three polar patterns selectable with a switch on the microphone body. Low noise transformer circuitry. External low frequency rolloff switch. Flat wide frequency response. Supplied with HM8 swivel adaptor mount. Packaged in a sturdy plastic carry case. Optional accessory HM7 elastic suspension shock mount. Studio 3Pattern DualElement Condenser MicrophoneSpecifications. Type Condenser Microphone. Element Pressure Gradient Microphone with FET Preamplifier. Polar Pattern OmnidirectionalCardioid Figure 8. Frequency Response 3020000 Hz. Equivalent Noise Level 181418dB A weighted IECDIN651. MaxSPL 142138142dB THD le 05 1000 Hz. Power Supply 48V Phantom Power P48 IEC 26815DIN45596
